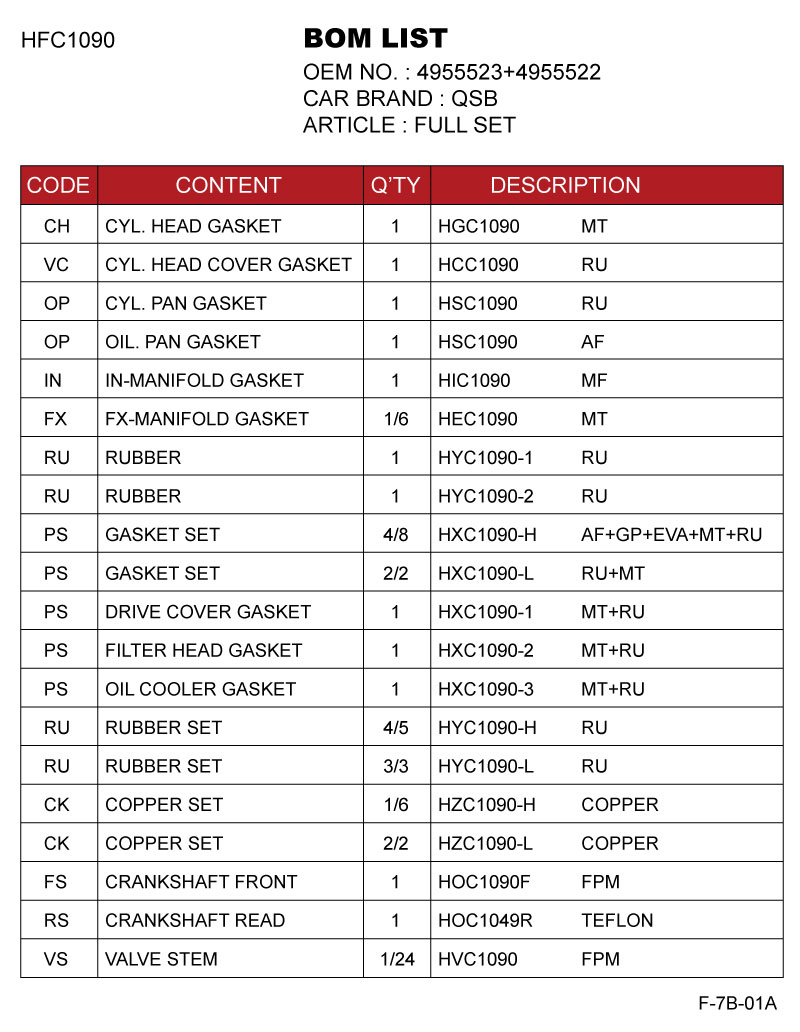

BOM LIST OF THE OVERHAUL
GASKET SET

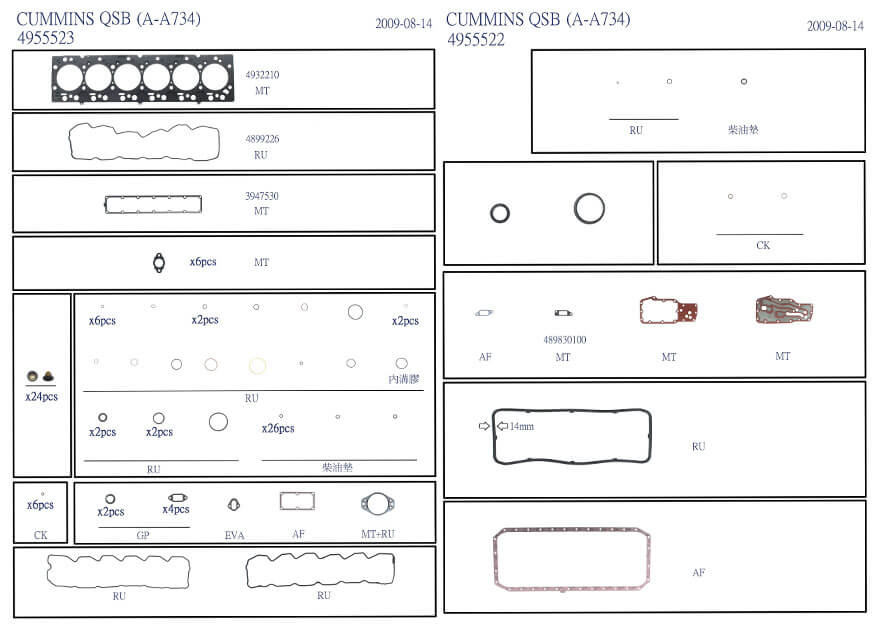

OEM NO. : 4955523+4955522CAR BRAND : QSBARTICLE : FULL SET
| CODE | CONTENT | Q'TY | DESCRIPTION | |
|---|---|---|---|---|

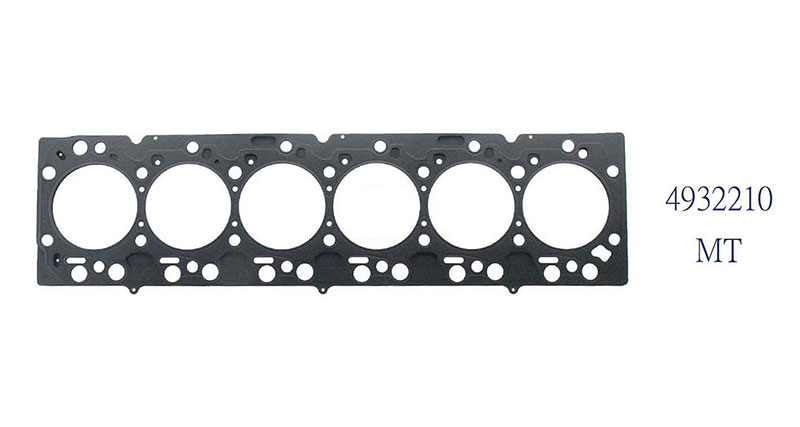

| CH | CYL. HEAD GASKET | 1 | HGC1090 | MT |

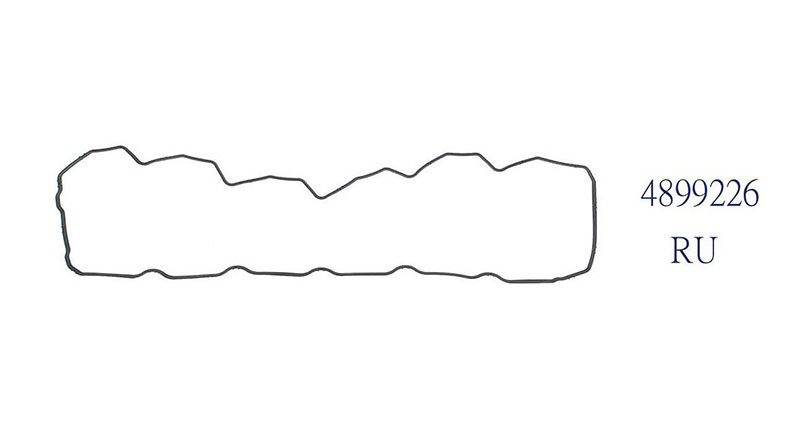

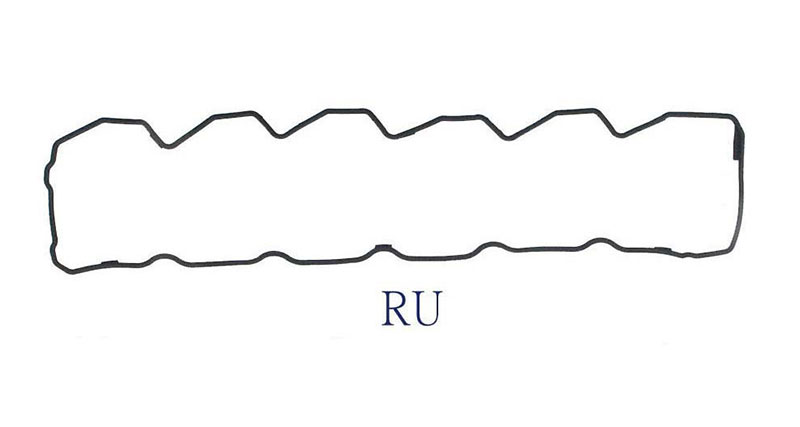

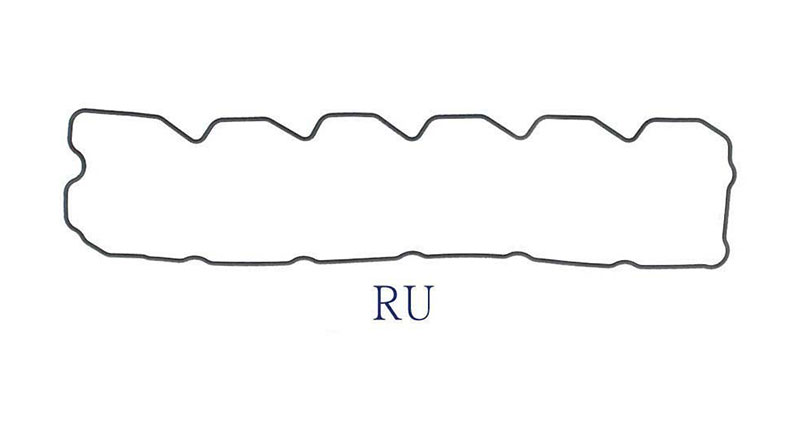

| VC | CYL. HEAD COVER GASKET | 1 | HCC1090 | RU |

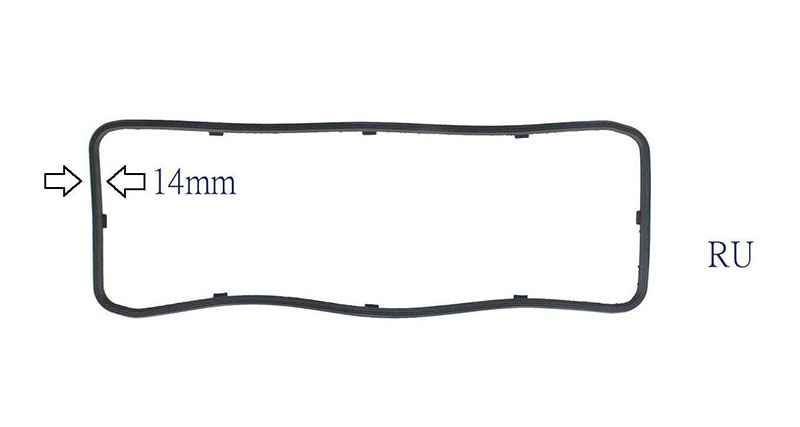

| OP | CYL. PAN GASKET | 1 | HSC1090 | RU |

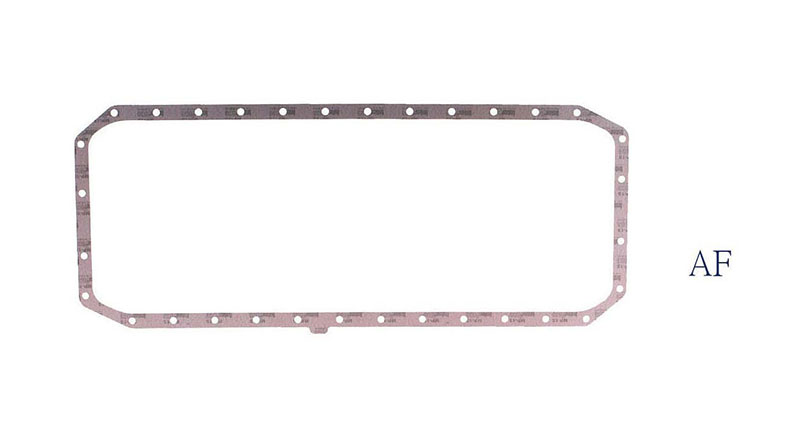

| OP | OIL. PAN GASKET | 1 | HSC1090 | AF |
| IN | IN-MANIFOLD GASKET | 1 | HIC1090 | MF |

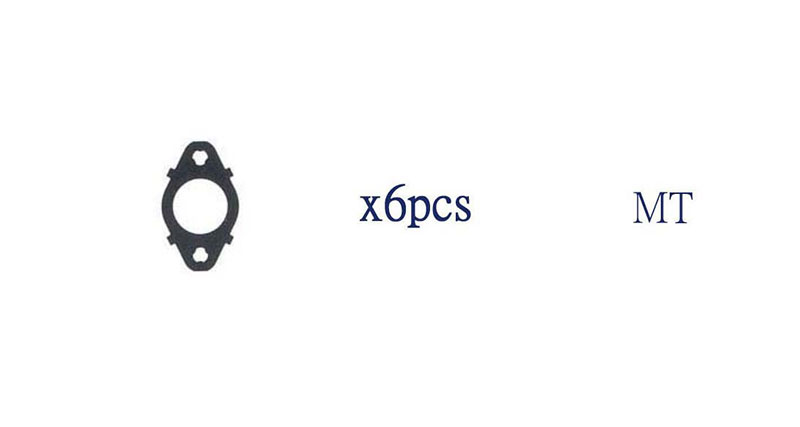

| EX | EX-MANIFOLD GASKET | 1/6 | HEC1090 | MT |
| RU | RUBBER | 1 | HYC1090-1 | RU |
| RU | RUBBER | 1 | HYC1090-2 | RU |
| PS | GASKET SET | 4/8 | HXC1090-H | AF+GP+EVA+MT+RU |
| PS | GASKET SET | 2/2 | HXC1090-L | RU+MT |
| CODE | CONTENT | Q'TY | DESCRIPTION | |
|---|---|---|---|---|

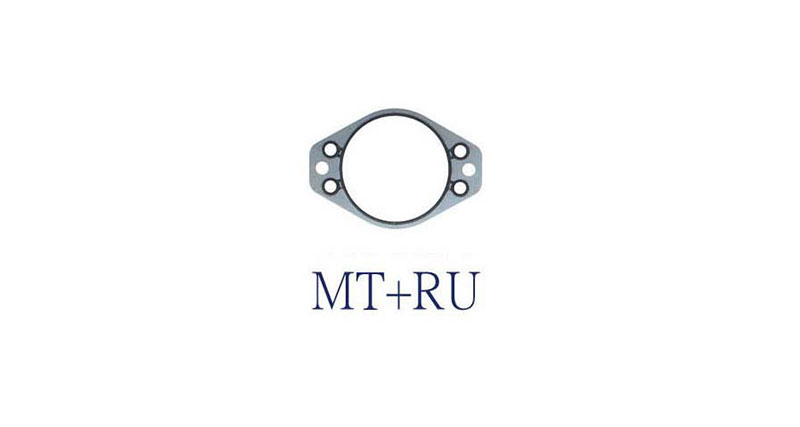

| PS | DRIVE COVER GASKET | 1 | HXC1090-1 | MT+RU |
| PS | FILTER HEAD GASKET | 1 | HXC1090-2 | MT+RU |

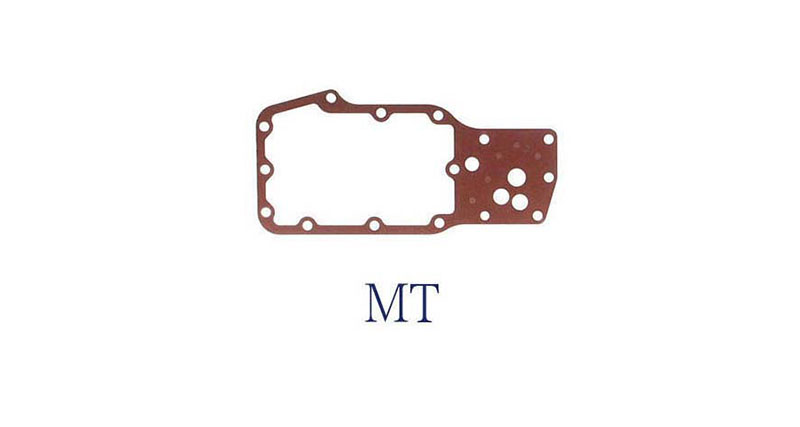

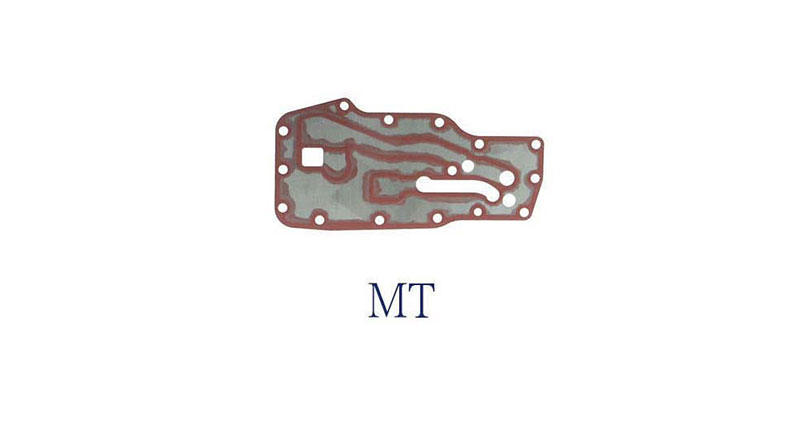

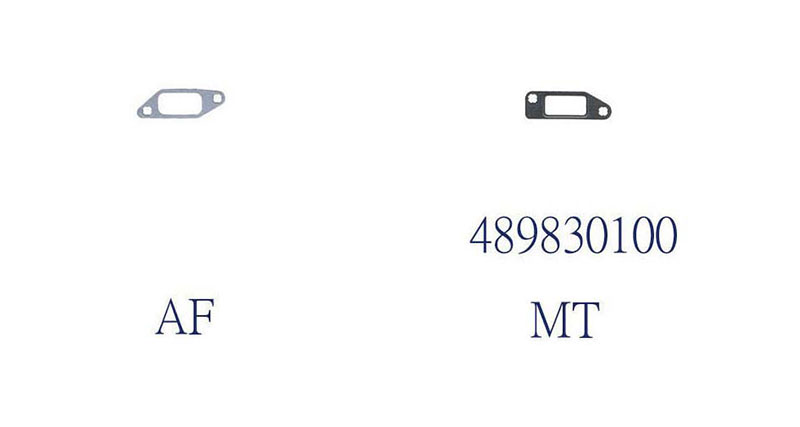

| PS | OIL COOLER GASKET | 1 | HXC1090-3 | MT+RU |

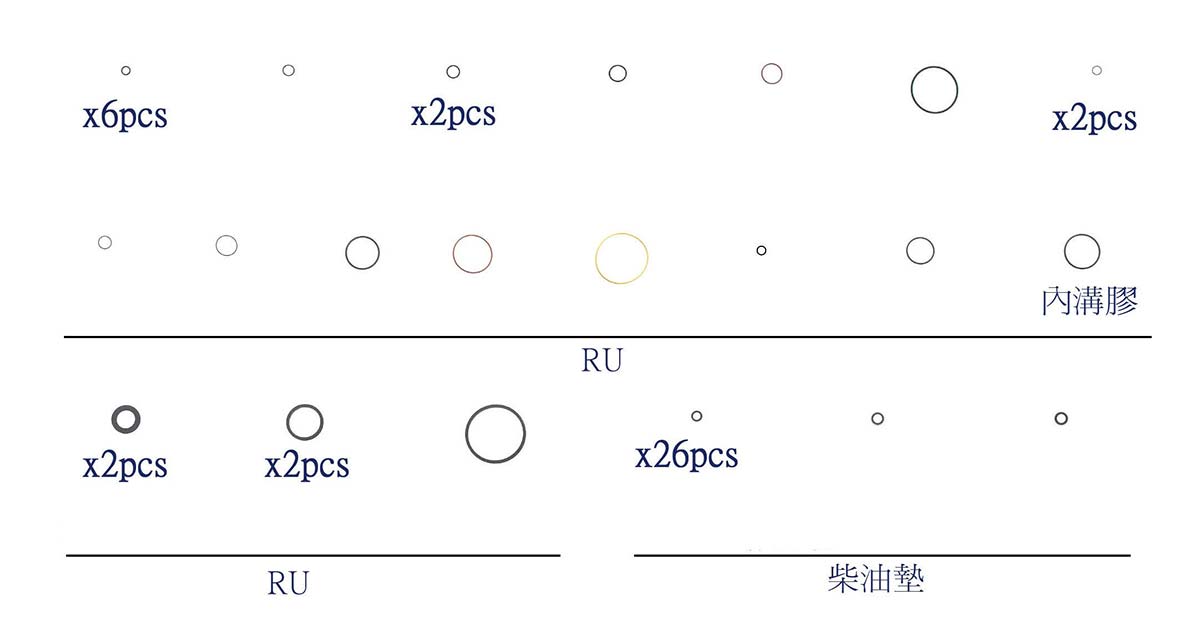

| RU | RUBBER SET | 4/5 | HYC1090-H | RU |

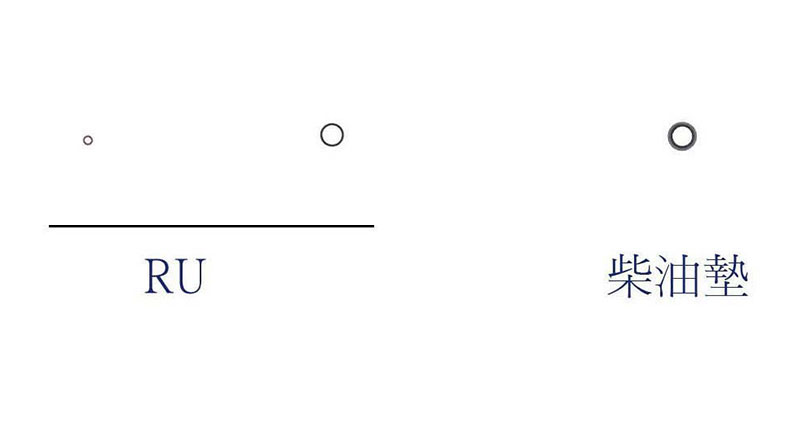

| RU | RUBBER SET | 3/3 | HYC1090-L | RU |

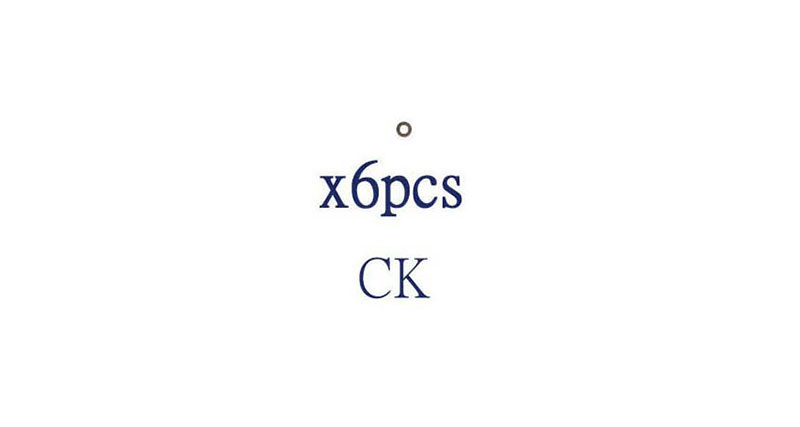

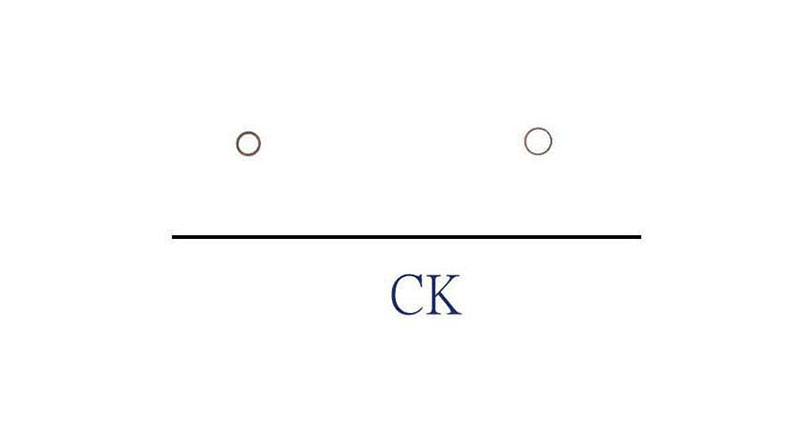

| CK | COPPER SET | 1/6 | HZC1090-H | COPPER |
| CK | COPPER SET | 2/2 | HZC1090-L | COPPER |

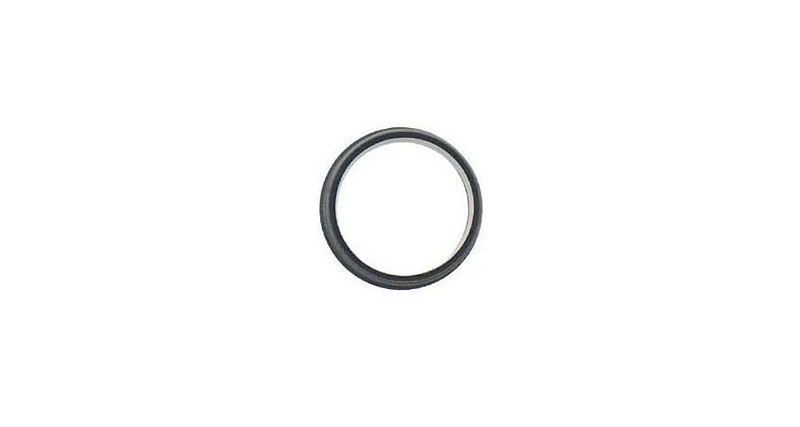

| FS | CRANKSHAFT FRONT | 1 | HOC1090F | FPM |
| RS | CRANKSHAFT READ | 1 | HOC1049R | TEFLON |

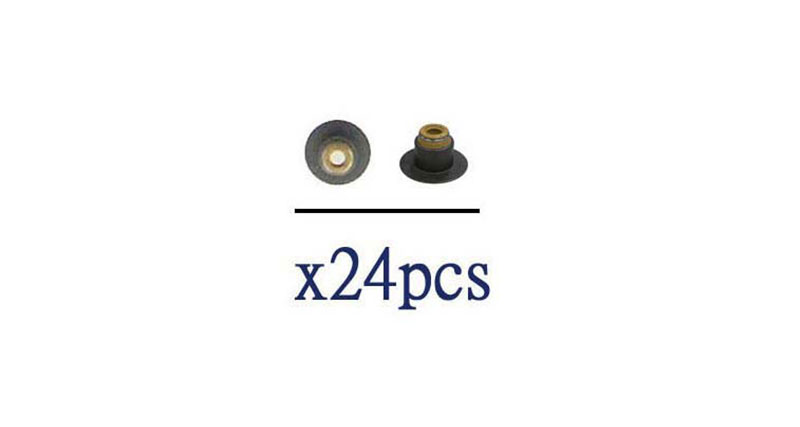

| VS | VALVE STEM | 1/24 | HVC1090 | FPM |

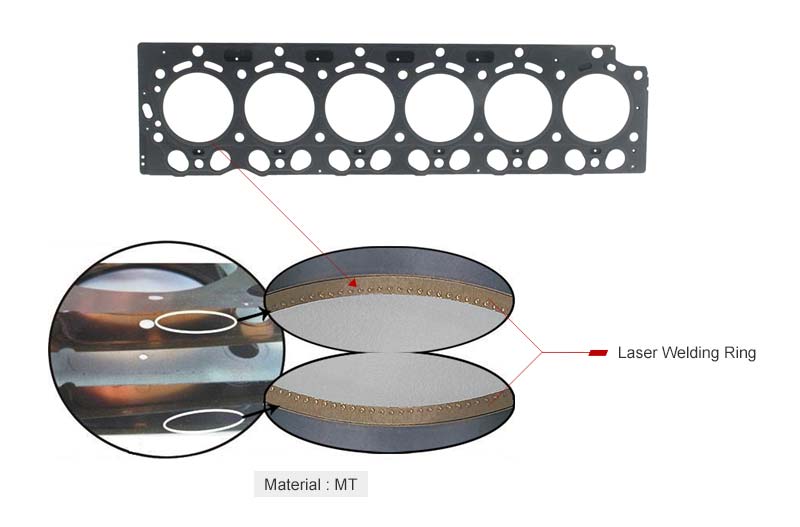

CYL.HEAD GASKET (LASER WELDING RING)
Laser welding is a new technique to join two or more pieces of material (usually steel) horizontally, even with different thickness.
It is a non-contact process that requires access to the weld zone from one side of the parts being welded.

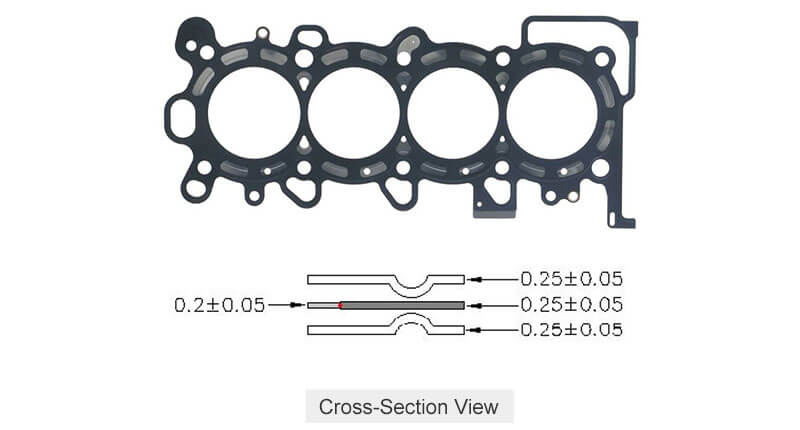

HONDA LD2A HGH3050N
Huang Lin has superb technology in operating Laser Welding.
Join multiple layer perfectly and balance the height.
CYL.HEAD GASKET
(LASER WELDING RING)
Advantage of Laser Welding :
- Replace manual welding and improve the accuracy
- Low temperature operation, avoid to damage the material and surface
- Join multiple layer perfectly and balance the height.

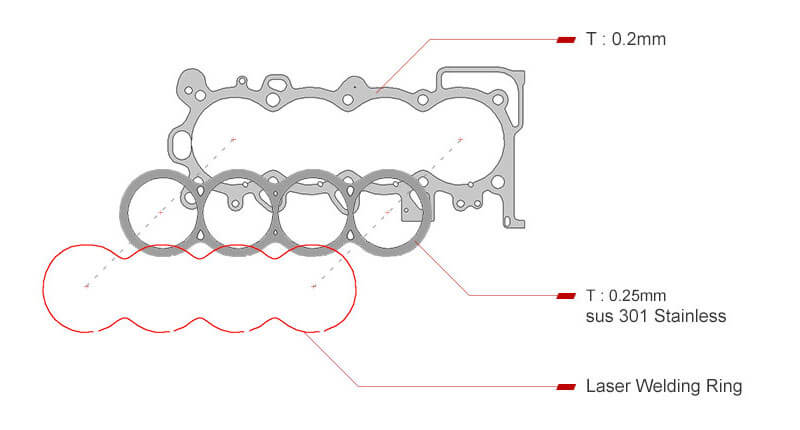

Multi-Layers Stainless (sus 301)
- Keep the flatness of material and bead
- Only 0.1m/m thickness of B/R, require very precise control of laser welding and combination.

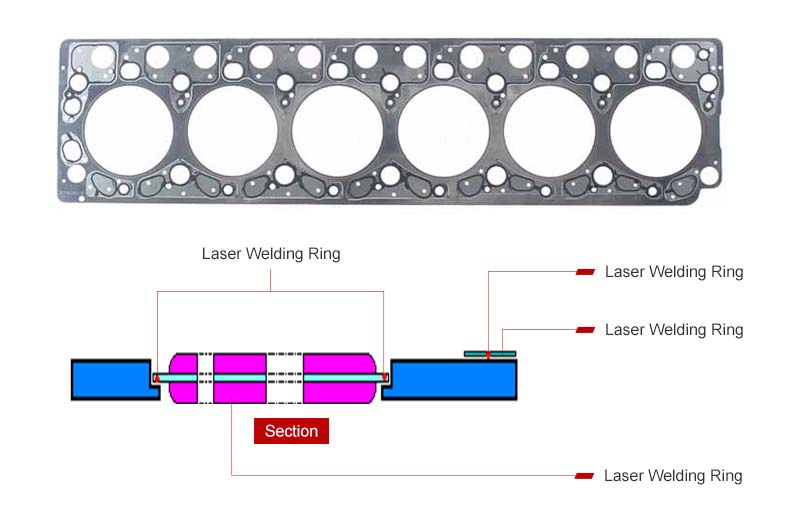

DEUTZ HGD3007-2
CYL.HEAD GASKET
(LASER WELDING RING+METAL)
This product is made by specific laser welding machine and spot techniques.
- The B/R needs to use the laser welding technology to accurately combine the 0.1m/m stainless steel with the main body vertically.
- Combine the rubber parts(FPM) and the metal gasket by laser welding to improve the accuracy and avoid to damage the material and surface
BENZ OM906 HGB1230

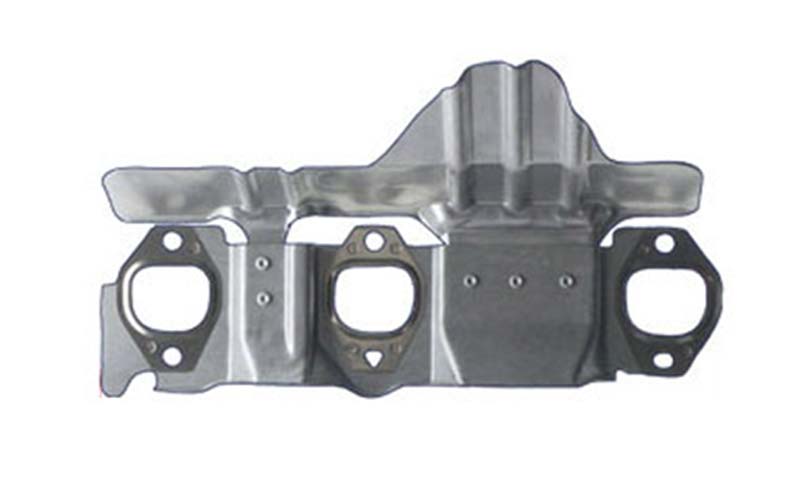

EXHAUST MANIFORD GASKET
GM 3.5L&3.9L HEG1005L
GM 3.5L&3.9L HEG1005MR
GM 3.5L&3.9L HEG1005ML
This product is made by specific laser welding machine and spot techniques.
- The exhaust manifold gasket designed with the heat shield.
- The tooling is costly, more difficult process to produce, apply with stereolithography 3D technology.
- Follow OE design and present quality to our customers.
